Ship-borne fire control system «Yakhont»

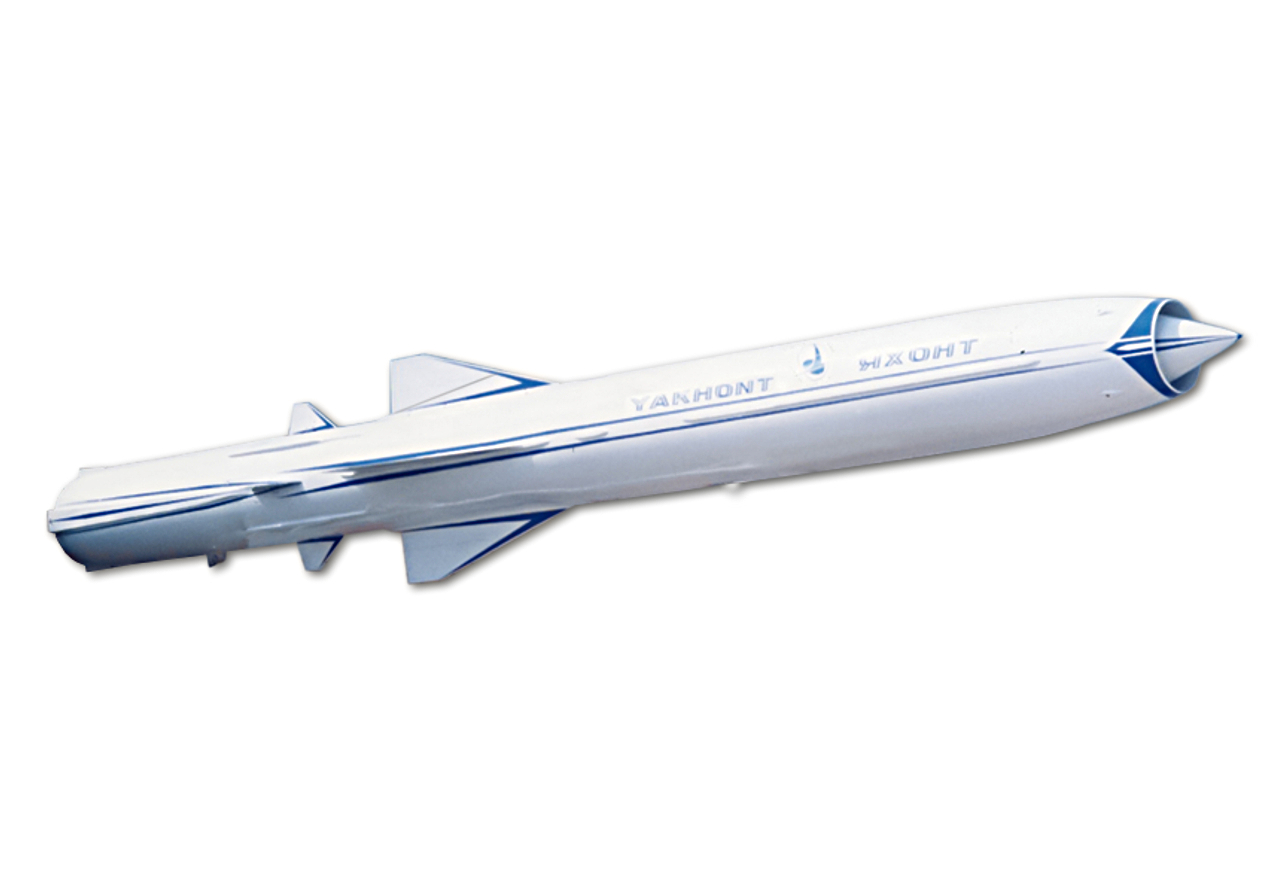

Shipborne fire control system for «Yakhont» cruise missile

The purpose and range of application

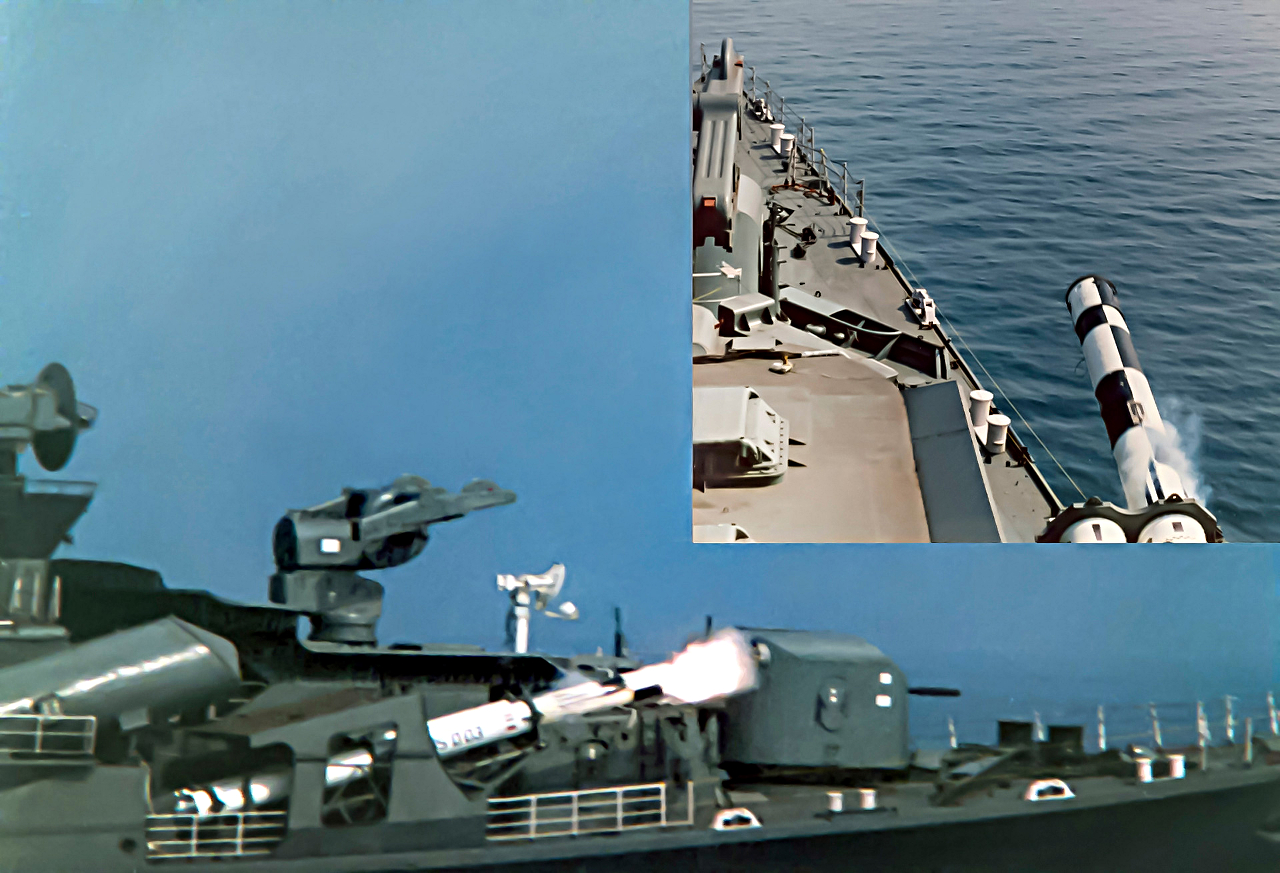

The purpose of shipborne missile complex with cruise missiles (CM) «YAKHONT»

  • The engagement of ships and transports of various classes from surface force tasks groups, escort ships, landing forces and single ships
  • Armament of surface ships and submarines.

Purpose of shipborne automated control system (SACS) and area of application

  • Reception and processing of the information from:
    • Ship’s navigational complex
    • Ship’s target designation system
    • Joint weapon implementation system
    • Log
  • Information representation at the control console of the complex status and the availability of missiles
  • Data generation for single or salvo firing (from 1 to 4 missiles). Quantity of operated missiles may be increased up to 8.
  • Emergency release of the missiles
  • Operational control of the complex
  • Training the personnel without actual missile employment
  • Carrying out of missile’s operational checks

Main tactical and technical data of the missile complex

The time for readiness for firing from switch-off state:

– SACS

4 min

– on-board control system of the missile

2 min

interval between cruise missiles in salvo

2-5 s

The set of SACS and performance characteristics

The complex consists of the following equipment:

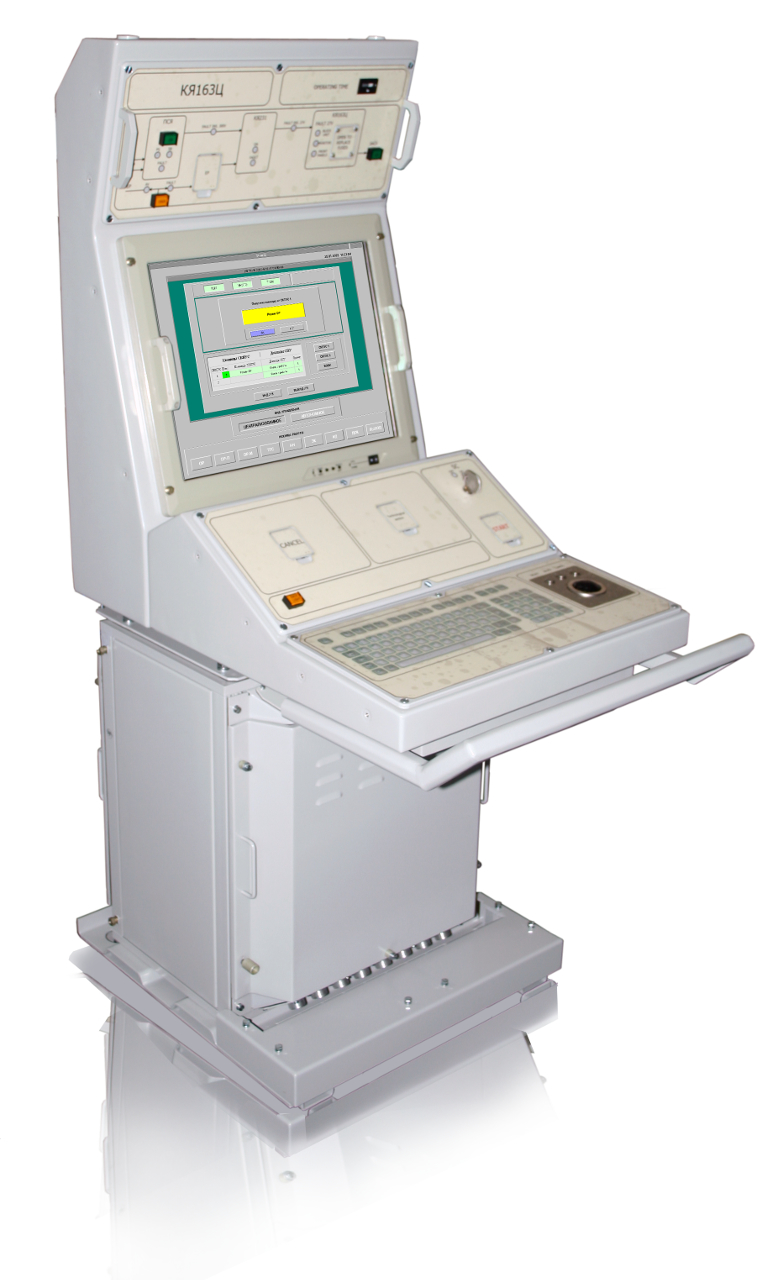

Device КЯ163Ц – is a central control console The device is designed to control prelaunch preparation firing cruise missiles (CM)

1 item

size

1497x550x935 mm

weight

not more than 80 kg

Device КЯ163П – is a peripheral control device The device is intended for generation of power supply for CM, control of its parameters and the code exchange with CM. It provides interaction with CM

2 item

size

1025x552x509 mm

вес

120 kg

Device КЯ231 – is power supply control console The device is intended for control of parameters of three-phase mains, insulation resistance and power supply distribution between SACS devices

1 item

size

1025x552x509 mm

weight

120 kg

Device ПСЯ – device for power supply conversion The device is intended for ship's power supply conversion

1 item

size

1025x552x509 mm

weight

200 kg

Power supply:

main

˜ 3 phase 400 Hz 115 V

emergency from storage batteries for missile emergency release

= 24/27 V

Cooling

natural
